With Christmas over and the cold weather preventing me doing much outside, I’m back working on my homebrew transceiver project. With so many sections requiring power, I’ve added a central power point from an upturned strip of Veroboard. I have just added a microphone amplifier circuit. I plan to feed that from a constant signal source so I can check the gain and response over the 300Hz to 3KHz audio range.
M0ZQR
This blog covers amateur radio advice and techniques. I plan to show the reader how to get started in ham radio after they have passed the exams. A lot of the news will be based on homebrew projects. Please leave comments if you would like more details on any of the subjects I talk about.
Sunday, 9 January 2022
Sunday, 12 December 2021
Building a HF SSB Transmitter

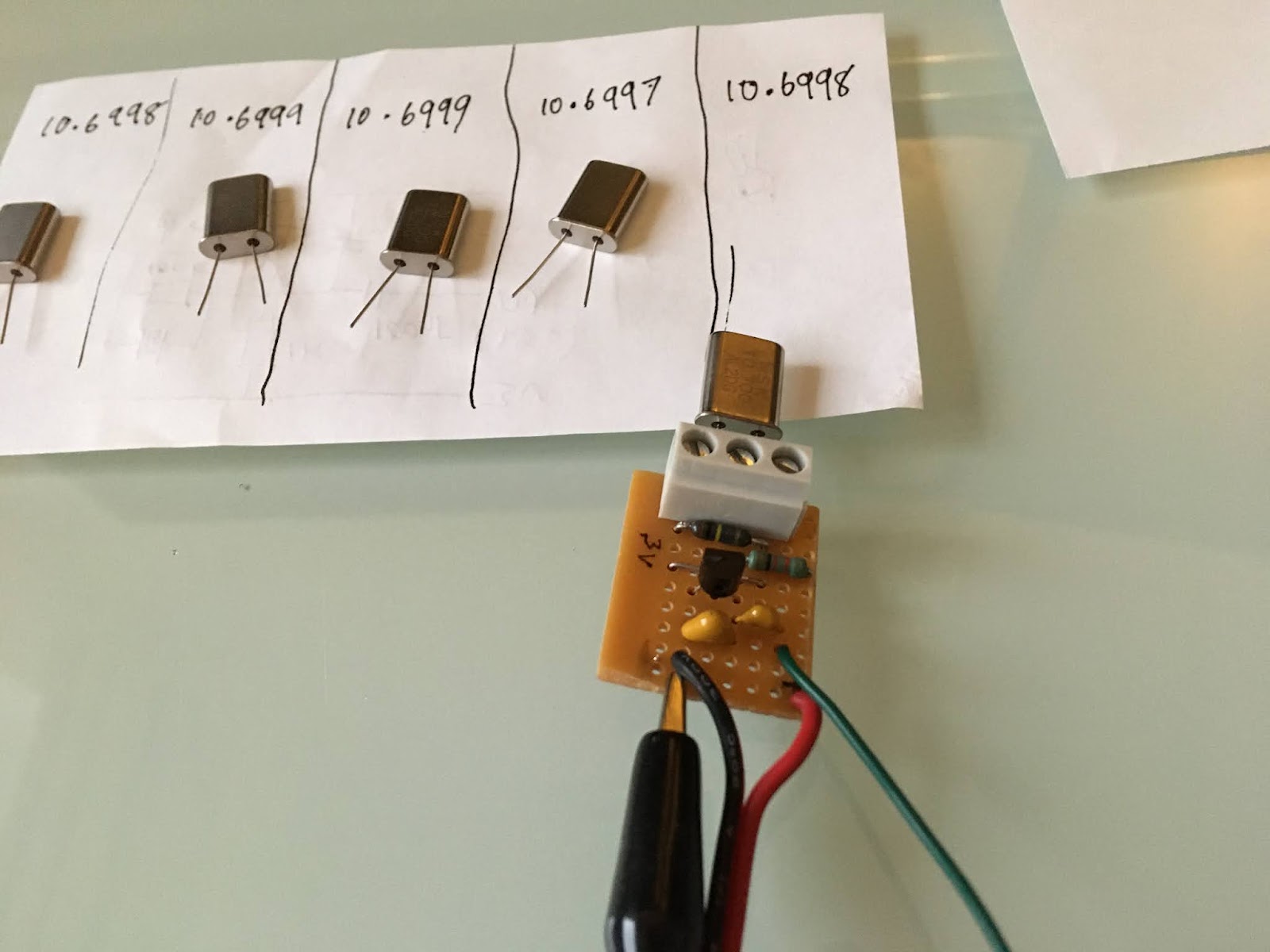

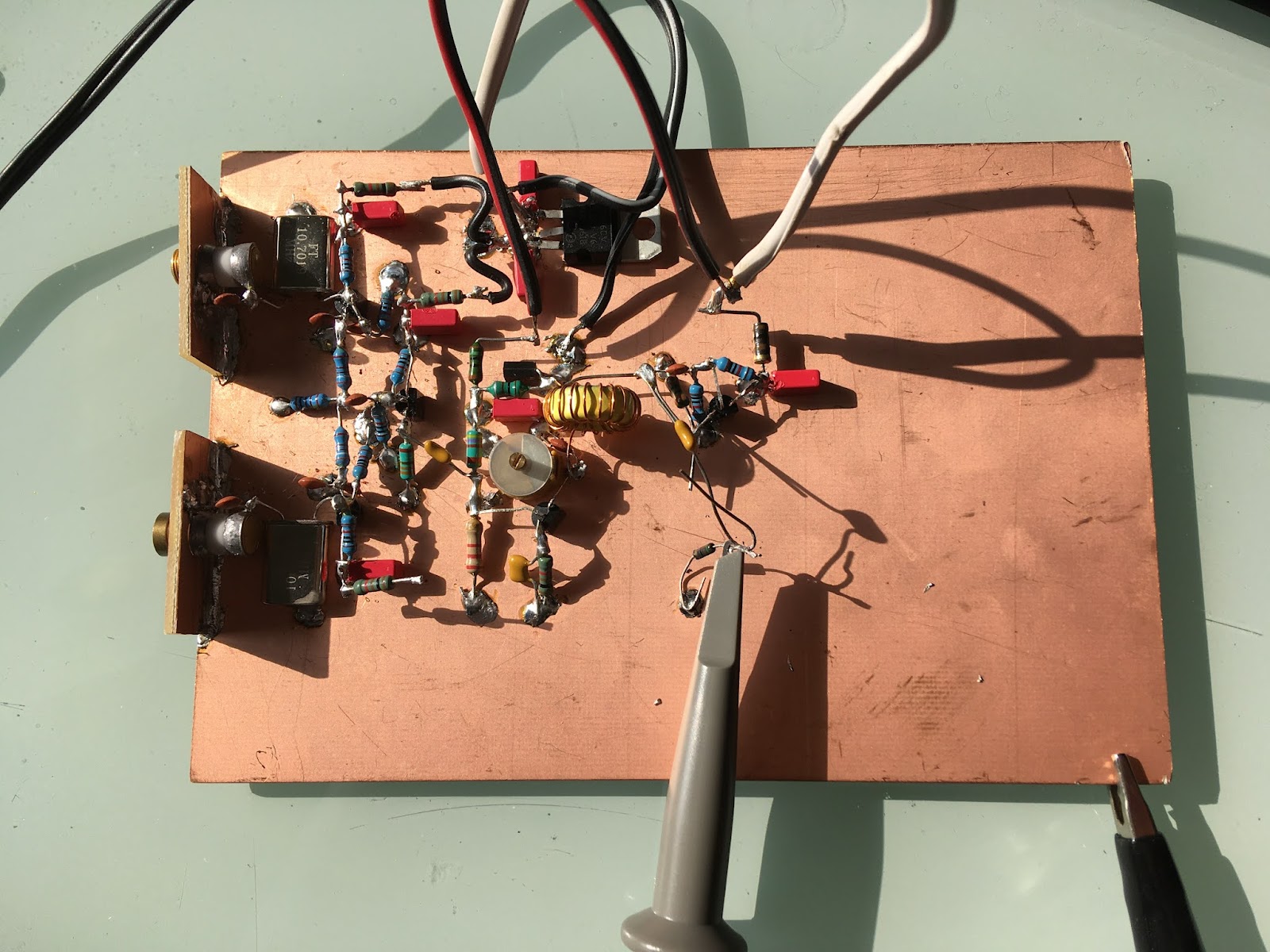

Just over a year ago I started building a HF transmitter. This started well but I soon realised that my old oscilloscope wasn't up to the task, so I splashed out the cash on a new one. Shown below are a series of pictures showing the progress. I stopped in the spring as I had many other jobs to do but now that winter is here, I'll be working on the transmitter again.
Friday, 18 July 2014
Building a DC to 2.5GHz stepped attenuator
Whilst sorting out some of my late fathers electronics, I came across an attenuator he was planning to build. Unfortunately his illness didn't allow him to start the project let alone finish it. In his memory I have built the attenuator and hope that he would have been pleased with the finished item.
The unit is based around a Weinschel 3007-100 stepped attenuator. It can apply 0 to 10dB of attenuation with an accuracy of plus or minus 0.3dB. It will work from DC to 2.5GHz and handle an input of up to 1 Watt. It has a 50 ohm impedance and should give a SWR of 1.3:1. The connectors of this sturdy unit are SMA. I managed to find some suitable coax and a couple of BNC chassis sockets that would take this rather thin cable. A trip to Maplin provided a suitable box. As the attenuator is connected using coax it was possible to select a plastic box rather than having to drill and file holes in a cast metal one. The hardest part of the build was wiring the SMA connectors. The miniature coax proved problematic on the eyes and fiddly with the fingers. The first cable was a pain but the second one seemed to be going well (may be too well). A quick test with a multi-meter showed that it had a short in one of the plugs. Fortunately I hadn't cut the coax too short so was able to cut it and start again.
After spending a few minutes each day for four days, the attenuator is now finished and fitted neatly in its box. The final job is to print the details on to some paper which I'll laminate and stick to the lid of the box. I had fun making this and hope to try it out once I complete my next project, a digital VFO.
Here are some pictures of the attenuator. I had to change some of the parts my father had sourced as the coax I used wouldn't fit his connectors.
The unit is based around a Weinschel 3007-100 stepped attenuator. It can apply 0 to 10dB of attenuation with an accuracy of plus or minus 0.3dB. It will work from DC to 2.5GHz and handle an input of up to 1 Watt. It has a 50 ohm impedance and should give a SWR of 1.3:1. The connectors of this sturdy unit are SMA. I managed to find some suitable coax and a couple of BNC chassis sockets that would take this rather thin cable. A trip to Maplin provided a suitable box. As the attenuator is connected using coax it was possible to select a plastic box rather than having to drill and file holes in a cast metal one. The hardest part of the build was wiring the SMA connectors. The miniature coax proved problematic on the eyes and fiddly with the fingers. The first cable was a pain but the second one seemed to be going well (may be too well). A quick test with a multi-meter showed that it had a short in one of the plugs. Fortunately I hadn't cut the coax too short so was able to cut it and start again.
After spending a few minutes each day for four days, the attenuator is now finished and fitted neatly in its box. The final job is to print the details on to some paper which I'll laminate and stick to the lid of the box. I had fun making this and hope to try it out once I complete my next project, a digital VFO.
Here are some pictures of the attenuator. I had to change some of the parts my father had sourced as the coax I used wouldn't fit his connectors.
The parts
The first lead completed
The finished attenuator
Labels:
2.5GHz,
amateur radio,
attenuator,
DC,
ham radio,
Weinschel
Monday, 24 June 2013
Building an inverted “L” antenna
The other day, quite by accident, I realised that my end fed
HF wire antenna had some issues. For a while now I have noticed that the bands
appeared to be very quiet. Where once the PSK frequencies had been busy they
now appeared dead. It so happened that I was tuned in to the 20m band but
needed to change the antenna leads about. As I started to unscrew my HF antenna
the band burst into life. It appeared that when the shielded side of the PL259 plug
touched the rigs socket, the signal strength vanished. If I positioned the
connector so that just the centre of the plug was used, I could hear lots of
PSK signals. I experimented by connecting my 2m antenna to the HF socket on the
rig and I could still hear everything. I therefore concluded that my wire
antenna had developed a fault. I had been thinking about changing this antenna
for a few months now so here was the opportunity I needed.
I have decided to build an inverted “L” with the aim of
making it resonate at one frequency. Although I use a tuner, I’d like to get
maximum performance on at least one band. My initial approach was to get
something working with the view to cutting it to length at a later date.
I needed to drive in a copper earthing point so that was my
first job. I used a section of copper water pipe and hammered that into the
ground near to the antenna feed point. I didn’t want to damage the top of the
copper pipe so I used a jubilee clip to give some strength and support and then
fitted a wide headed bolt to the top of the tube. I rolled some paper around
the thread of the bolt so that it was a tight fit. This hammered into the
ground quite easily as this area of ground never gets the sun so is always
damp. I then connected the shield of the coax to the earth and the centre to my
antenna wire via a terminal block. The “L” shape of the wire has a slightly
longer horizontal length over the vertical length. For now this is fine until
the second stage which will be to tune the antenna. I plan to screw a box to
the wall which will consist of a copper back plate connected directly to my
earth rod. I will then attach some sockets to this to enable me to easily connect
my inverted “L” and any other experimental antennas. For now I have water
proofed the earth and antenna connection as shown in the picture below.
Back at the transmitter, I can once again hear the signals I
would expect to hear. At the moment the vertical part of the “L” is next to my
house which is far from ideal. If this antenna proves itself I will look to
feed it from the other end, reducing possible interference.
The earth rod prepared for being hit with a
hammer
Temporary connections made waterproof
A view skywards following the vertical path of the “L”
Tuesday, 18 June 2013
Building a sliding mount for my in car radio - Part 5
Just had lots of fun running the 12v supply from the engine bay
of my car to a point just under my dashboard. Modern cars really know how to
squeeze every last inch of space. After an hours hard work and some cut hands I
finally got the cable to the correct location. I was happy to see my rig
powering up and quickly grabbed a SWR meter to test the antenna. With an output
of 50 Watts I have a near 1:1 SWR across the repeater and main transmission
frequencies. A quick audio check confirmed I could contact Kent from the
Danbury repeater. My next test is to try out the rig whilst mobile, probably on
my way to work. The rig sits nicely on its slide mount and can be easily fitted
and removed. I’ll probably run a short length of coax so that when I fix the
mag mount I won’t have trailing leads in the foot well. Let me know if you plan
to make your own slide mount and need any advice.
Tuesday, 28 May 2013
Building a sliding mount for my in car radio - Part 4
Now that I have my car back after its accident, I was able
to attach the fixed plate that makes up the mounting point for my slide mount.
I may trim the screws so that they fit flush but they don’t get in the way at
the moment. The plate fits well giving a sturdy base to slide the radio onto.
When the radio is in position it is very accessible and doesn’t interfere with
my driving position or getting in and out of the car. The next job is to run the power lead from the battery
through the bulkhead. The end of the lead will then be stored in the dropdown
tray behind the radio. I will then do something similar with the antenna lead
so that it is always available at the radio end and easy for me to connect the
lead from the mag-mount at the other.
Top of the bracket fitted to the car. I’ll remove it and
give it a coat of matt black paint so that it blends in better.
The radio slid into position.
Thursday, 2 May 2013
Building a sliding mount for my in car radio - Part 3
I have now soldered the two channels onto the brass base. I
held the channels in place with some bent paperclips which actually did a very
good job. I cleaned the brass and applied some flux before heating it. The
solder ran smoothly between the parts and made good clean joints. The top part
of the mount slides smoothly in the channels and should hold the radio securely
to the underside of my dashboard. The next job is to clean up the brass and
remove any flux and excess solder.
Paperclips did a good job of holding the parts
All the parts soldered in place
The finished parts showing the top mount slid into place
